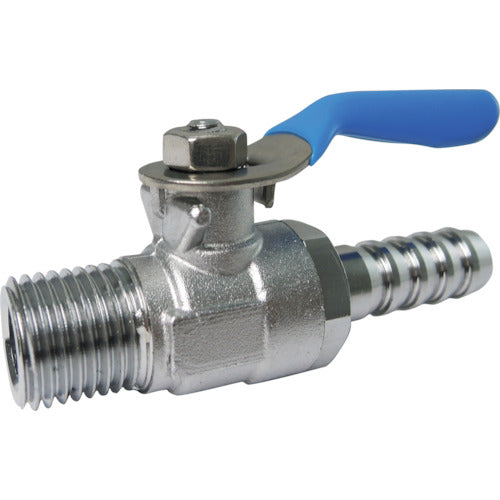

TRUSCO Mini Ball Valve Hose Nipple Type R1/8 x 10.5mm MH1105 1 pc

Catalog number: MH1105 Features: ● Compact ball valve with integrated valve and fittings, reducing space. ● Handle is made of stainless steel, rust-resistant and weather-resistant. ● Handle can be rotated 180°, so installation direction is not limited. Applications: ● For piping components of air compression equipment such as compressors, machine tools, instrumentation equipment, and other industrial machinery and equipment Specifications: ● Height (mm): 23 ● Operating pressure (MPa): 0.98 ● Operating temperature range (℃): -10 to 80 (excluding frozen areas) ● Connection diameter D: R1/8 ● Bamboo shoot outer diameter (mm): 10.5 ● Fluid used: water, air, oil ● Handle length (mm): 40 ● Operating temperature range: -10 to 80℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Materials/Finish: ● Body: Brass (chrome plated) ● Handle: Stainless steel (SUS304) (PVC coating) ● O-ring: Nitrile rubber
