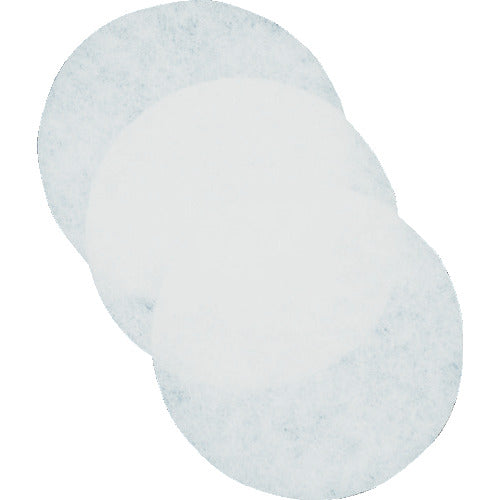

TRUSCO Motor Filter Adhesive Type Thin (10 Sheets) 175ΦMM Thickness 2mm TNUM175S 1 Box

Catalogue number: TNUM175S Features: ●Adhesive processing on the back makes installation easy. ●Can be fixed without a fixing jig. ●Made of flame-retardant nonwoven fabric. ●Made of halogen-free material. ●Can be easily cut with scissors. Applications: ●Used in factory air conditioners, ventilation vents, control panels, and motor intakes to prevent the intrusion of mist and dust. ●Attached to the intake vents of computers and servers to prevent the intrusion of dust, etc. ●As a pre-filter for air conditioners, ventilation fans, etc. Specifications: ●Collection efficiency (%): 27.6 ●Size (mm): Φ175 ●Thickness (mm): 2 ●Initial pressure loss (Pa): 9 ●Heat resistance temperature (℃): 95 ●Filtration air speed (m/s): 1.5 ●Body dimensions (φmm): 175 ●Flame retardant (JIS L 1091 A-1 method, Category 3 compliant) ●Standard air speed: 1.5m/s ●Cut type Material/Finish: ●Polyester Caution: ●Be sure to thoroughly degrease the mounting area before applying. ●Do not use on equipment with a large amount of intake air or without a fan cover. ●Replace the filter when it becomes dirty. ●When the filter is removed, some glue will remain, but this can be wiped off with a commercially available sticker remover or mild detergent.
