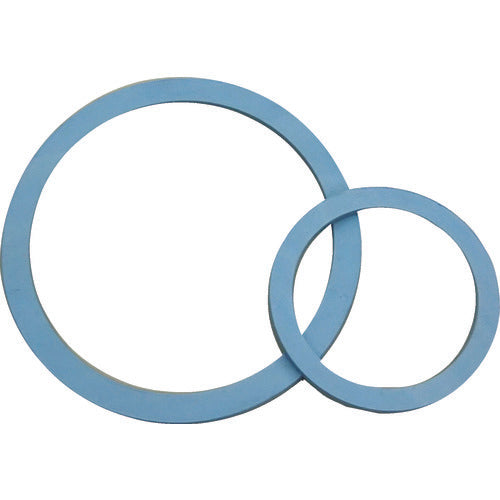

TRUSCO Union packing 100A 1.5T D6000-100A-1.5T-UN 10 pieces

Catalog number: D6000-100A-1.5T-UN Features: ●This is a sheet material type union packing made by mixing a small amount of filler with a synthetic rubber binder with excellent oil resistance on high quality non-asbestos fibers and rolling and vulcanizing it. ●This is a non-asbestos joint sheet that is widely used in general piping for water-based and oil-based fluids. ●It has passed the public test for JIS S 3200-7, which is the suitability standard for water appliances. Applications: ●For packing of water-based fluids (water, hot water), oil-based fluids (thermal oil, lubricating oil, fuel oil), etc. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Inner diameter (mm): 122 ●Outer diameter (mm): 141 ●Thickness (mm): 1.5 ●Usage temperature range: -100 to 150°C ●JIS S 3200-7 Public test passed Material/Finish: ●Inorganic fiber ●Aramid fiber ●Oil-resistant synthetic rubber
