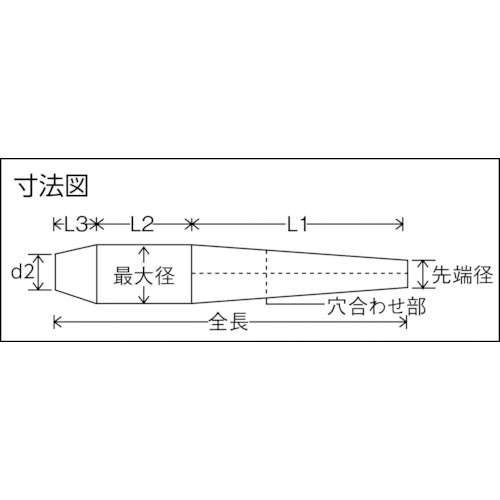

Catalogue number: TYSP-16 Features: ● Used for aligning holes in steel plates, etc. Applications: ● For temporarily fixing holes in steel plates. Specifications: ● Total length (mm): 160 ● Tip diameter (mm): 9 ● Maximum diameter (mm): 19 ● Hole alignment dimensions (mm): 16 ● L1 (mm): 90 ● d2 (mm): 14 ● L3 (mm): 25 ● L2 (mm): 45 ● Hardening hardness: HRC40 Material/Finish: ● Carbon steel Note: ● For safety, it is recommended that you select the taper part (L1) so that it matches the hole diameter at about 1/3 of the point from the body part (D).
