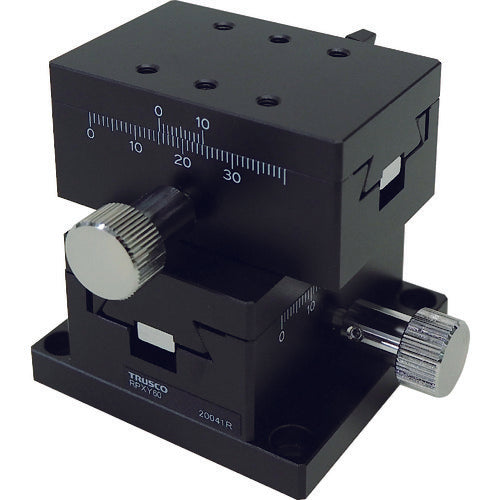

TRUSCO Rack and Pinion XY Stage 40X60 RPXY60 1 pc

Catalog number: RPXY60 Features: ● A moving unit that uses a dovetail groove for the moving guide. ● A rack and pinion is used for the feeding method, allowing for a large amount of movement. ● Can be widely used for positioning cameras, sensors, etc. ● Base plate is sold separately. Applications: ● For positioning cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 40 x 60 ● Travel amount (mm): ±15 ● Horizontal load capacity (N): 39.2 ● Straightness (μm): 50 ● Straightness (mm): 0.05 ● Type: XY stage ● Clamping method: Screw type ● Operation unit mounting position: Single handle ● Movement mechanism / feeding method: Rack and pinion type ● Travel amount / one knob rotation: Approximately 18 mm ● Graduation: 0.1 mm ● Sensitivity: 0.1 mm ● Movement guide: Yes Material / Finish: ● Main material: Aluminum alloy
