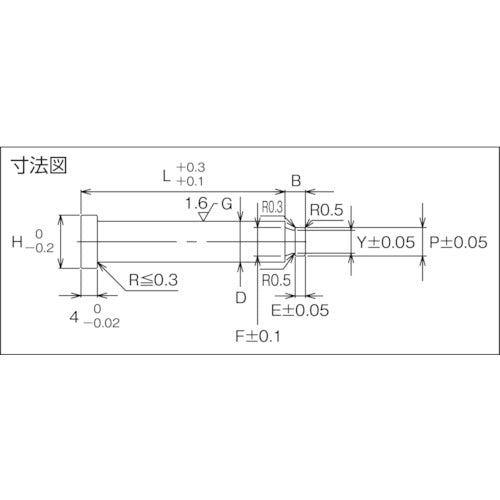

Catalog number: T-RRLH4-50 Features: ● Used to separate and remove runners from molded products. Applications: ● As a part of plastic molds. Specifications: ● D (mm): 4 ● H (mm): 6 ● E (mm): 1 ● Y (mm): 2.3 ● F (mm): 3.0 ● P (mm): 2.8 ● B (mm): 2.5 ● L (mm): 50 ● Normal flange diameter Material/Finish: ● High-speed steel SKH51 (hardness 59-61HRC)
