TRUSCO Link Level Adjuster Stopper S4TKP MS-3054TKP 1 S

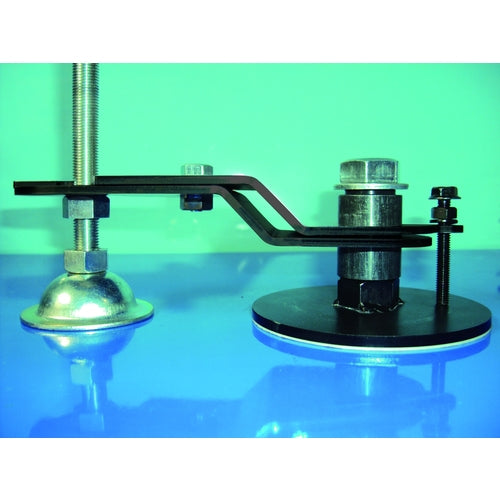

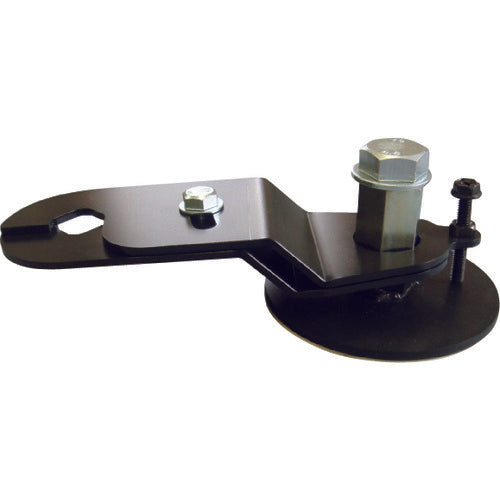

Catalog number: MS-3054TKP Features: ●This product prevents the movement of various equipment and devices in factories that are installed with level adjusters with bolt diameters of M12 to 20. ●By attaching four of these products to four level adjusters, it is possible to prevent the movement of various equipment and devices weighing less than 1200 kg. ●The bolts of the level adjuster are sandwiched and fixed with two scissors connecting plates connected to the disk part with adhesive pads attached to the floor. ●The height of the entire product is reduced by the configuration in which the bolts of the level adjuster are sandwiched between the scissors connecting plates, so it can be installed within the installation space of the target object. ●Since the disks are fixed with adhesive, there is no need to drill holes that damage the floor surface like with anchors. Applications: ●For places where you want to reinforce earthquake resistance without stopping the equipment in operation by sandwiching the level adjuster. Specifications: ● Compatible bolt range: M12 to M20 ● Height adjustment range (mm): 22 to 63 ● Body dimensions (mm) width x length x thickness: 100 x 205 x 67 ● Target weight: 300 kg or less per piece Material/Finish: ● Treated steel plate ● Plated screws ● Acrylic adhesive Set contents/Accessories: ● Body x 1: Product details (disc with adhesive pad: 1, scissors connecting plate: 2, M16 nut: 1, M8 bolt: 1, M16 hex bolt: 1), Primer B x 1, Instruction manual ● Primer B (5 g) x 1
