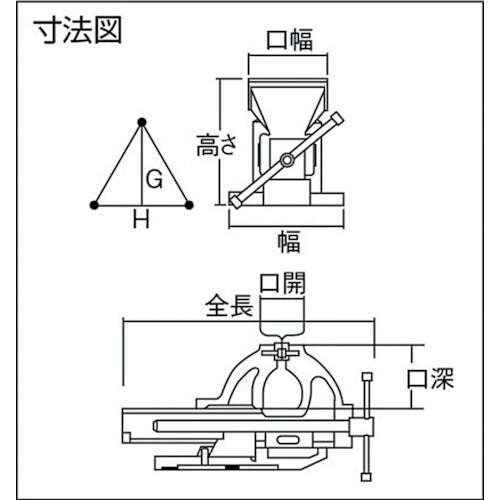

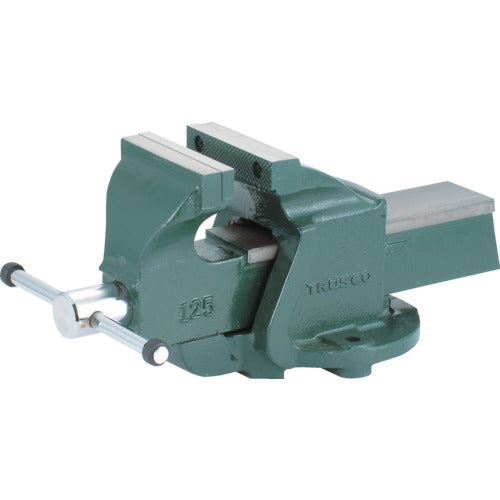

Catalog number: LV-100N Features: ● Strong body that holds strong clamping force. Specifications: ● Total length (mm): 350 ● Width (mm): 165 ● Height (mm): 175 ● Jaw width (mm): 104 ● Jaw opening (mm): 110 ● Jaw depth (mm): 76 ● Mounting hole dimensions (mm): 14 ● Clamping pressure (kN): 20 ● Type: Lead vice ● Mounting dimensions (mm) G: 74 ● Mounting dimensions (mm) H: 128 Material/Finish: ● Body: Cast iron ● Shaft, handle, and jaw: Steel Caution: ● Do not overtighten the handle by hitting it with a hammer, etc. ● Do not insert a pipe or other object into the handle to extend it and overtighten it. ● Do not use a lever to bend the workpiece fixed in the vice or apply excessive impact. ● Damage or failure caused by misuse is not covered by the warranty.
