トラスコ中山(株)
TRUSCO Locating Ring (for Volta type, 2 holes) TLLRBS60-15 1 pc
TRUSCO Locating Ring (for Volta type, 2 holes) TLLRBS60-15 1 pc
Regular price
¥823
Regular price
Sale price
¥823
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

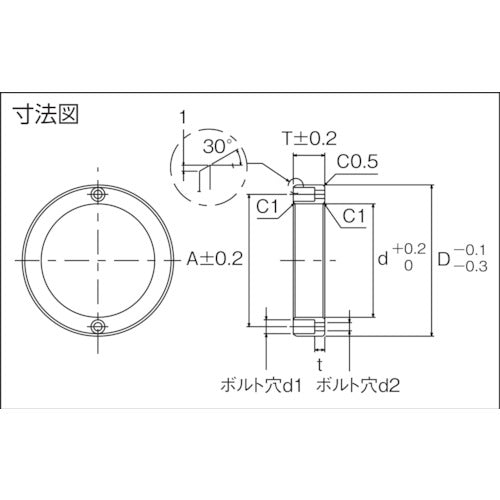

Catalog number: TLLRBS60-15 Features: ● Locating ring for plastic molds. ● Serves to position the mold and molding machine. ● Type that is attached with a standard bolt. Specifications: ● D (mm): 60 ● T (mm): 15 ● Compatible bolt: M5 ● Bolt hole d2 (mm): 5.5 ● Bolt hole d1 (mm): 9 ● d (mm): 40 ● t (mm): 5 ● A (mm): 50 ● For plastic molds Material / Finish: ● Carbon steel (S45C)
