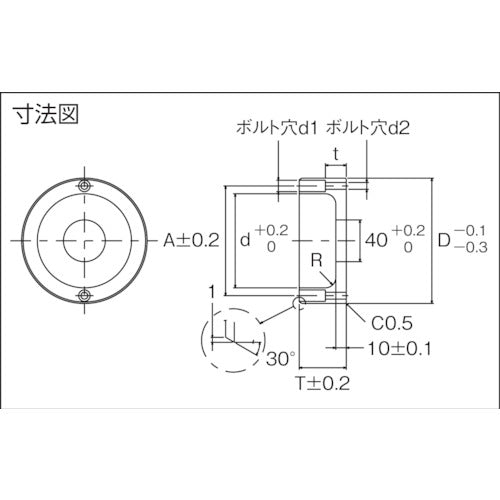

Catalog number: TLLRBD100-20 Features: ● Locating ring for plastic molds. ● Serves to position the mold and molding machine. ● Type that is attached with a standard bolt. Specifications: ● D (mm): 100 ● T (mm): 20 ● Compatible bolt: M6 ● Bolt hole d2 (mm): 6.5 ● Bolt hole d1 (mm): 11 ● d (mm): 70 ● t (mm): 9 ● A (mm): 85 ● R (mm): 5 ● For plastic molds Material / Finish: ● Carbon steel (S45C)
