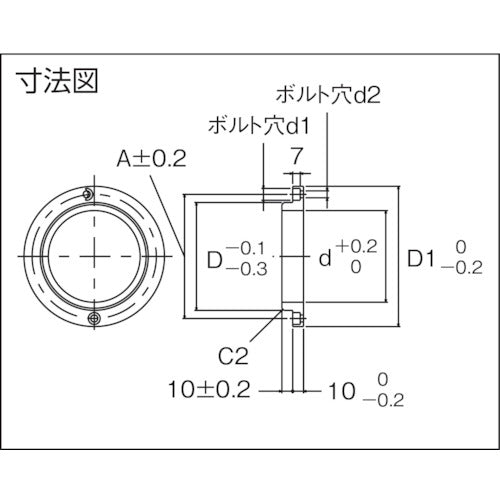

Catalog number: TLLRK100 Features: ● Locating ring for plastic molds. ● Serves to position the mold and molding machine. ● Type to be attached to JIS type sprue bushing. Specifications: ● D (mm): 100 ● Compatible bolt: M6 ● Bolt hole d2 (mm): 6.5 ● Bolt hole d1 (mm): 11 ● d (mm): 85 ● A (mm): 115 ● D1 (mm): 130 ● For plastic molds Material / Finish: ● Carbon steel (S45C)
