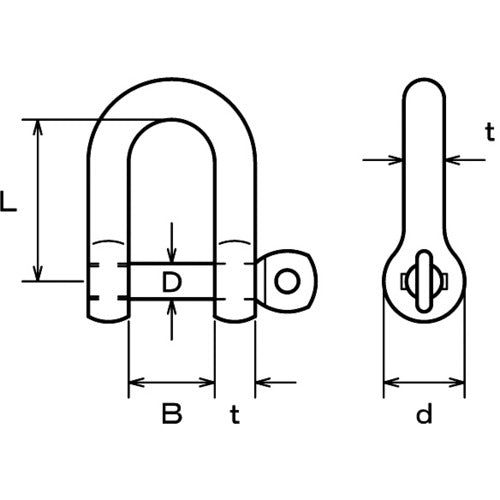

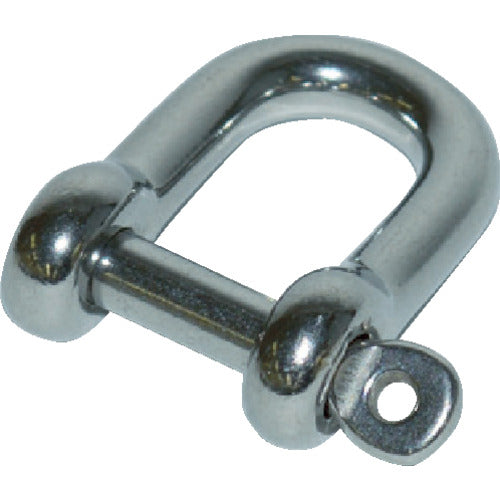

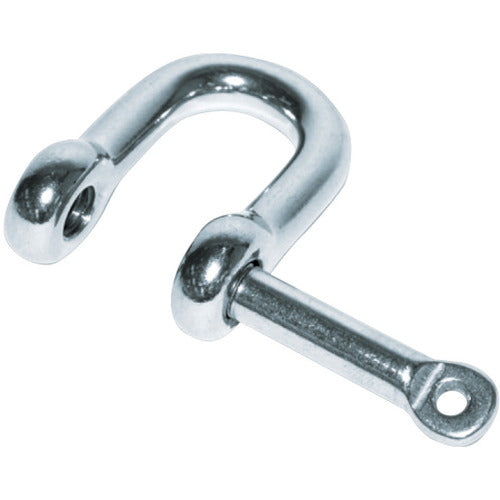

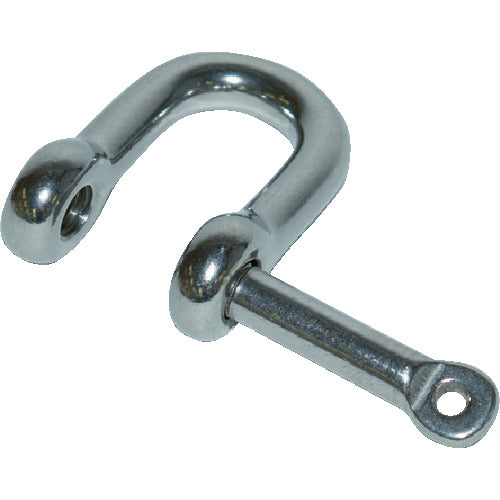

Catalog number: TLPS-10 Features: ● The pin does not fall out, so there is no risk of accidentally dropping it, making it suitable for working at heights. Applications: ● As a connecting fixture for chains and wire ropes. Specifications: ● Working load (kN): 2.94 ● Screw diameter: M10 ● B (mm): 20 ● D (mm): 9 ● L (mm): 40 ● d (mm): 20 ● t (mm): 10 Material/Finish: ● Stainless steel (SUS304)
