TRUSCO Rod End, Oil-Free, Female Thread 14mm CHSL14, 1 Box

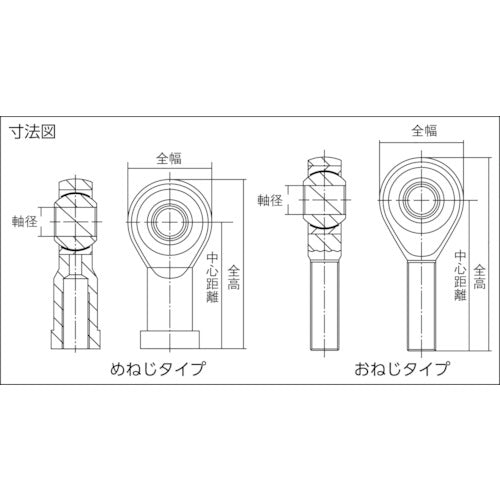

Catalog number: CHSL14 Features: ●Oil-free type with synthetic resin with excellent self-lubricating properties bonded to the race surface of the ball. Applications: ●Conveyor machine parts, machine tool parts, FA equipment, packaging, textile, agricultural machinery parts, robot parts. Specifications: ●Shaft diameter (mm): 14 ●Overall width (mm): 36 ●Center distance (mm): 57 ●Overall height (mm): 75 ●Thread dimensions: M14 x 2.00 ●Basic dynamic load rating (kN): 31.00 ●Oil-free type ●Operating temperature range: -30 to 150°C ●Internal thread type (left-handed thread) Material/Finish: ●Body: Steel ●Race: Self-lubricating synthetic resin ●Ball: High carbon chromium bearing steel
