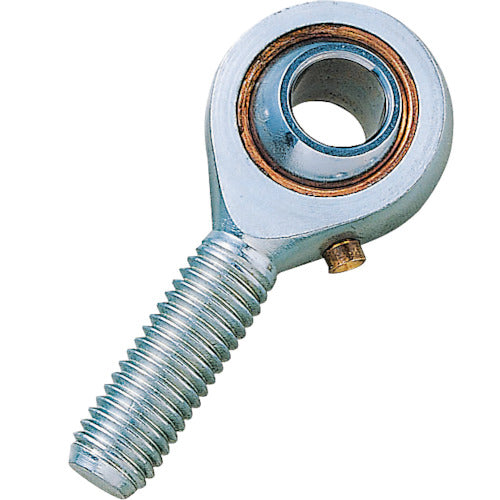

TRUSCO Rod End Oil-Refillable Male Thread 10mm (2 Pieces) POS10 1 Box

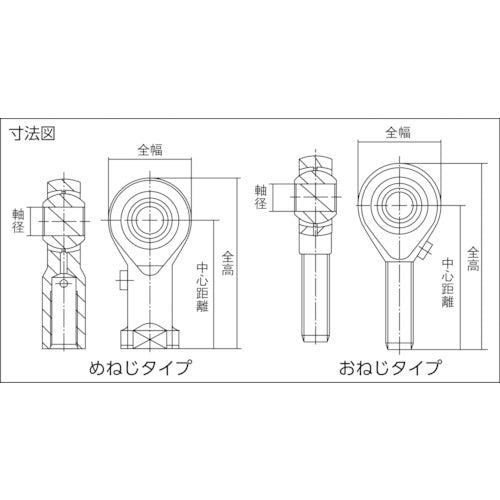

Catalogue number: POS10 Features: ●Excellent wear resistance, corrosion resistance, and rigidity. ●The grease nipple on the body can be used to lubricate the sliding surface. Applications: ●Various conveying machine parts. ●Various machine tool parts. ●FA equipment. ●Packaging machine parts. ●Textile machine parts. ●Agricultural machinery parts. ●Robot parts. Specifications: ●Shaft diameter (mm): 10 ●Overall width (mm): 28 ●Center distance (mm): 48 ●Overall height (mm): 62 ●Thread dimensions: M10 x 1.50 ●Basic dynamic load rating (kN): 10 ●Lubricated ●Operating temperature range: -50 to 150°C ●Male thread type (right-hand thread) Materials/Finish: ●Body: Steel ●Race: Special copper alloy ●Ball: High carbon chromium bearing steel Caution: ●Use a lubrication nozzle for drive-in nipples. ●Recommended nozzle: HSP-3 (Order code: 112-8159)
