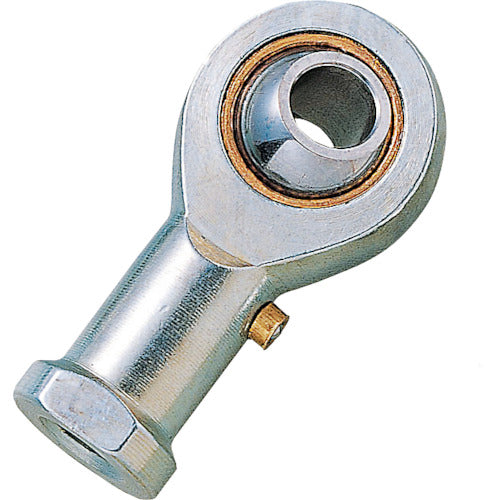

TRUSCO Rod End Oiled Female Thread 22mm PHSL22 1 Box

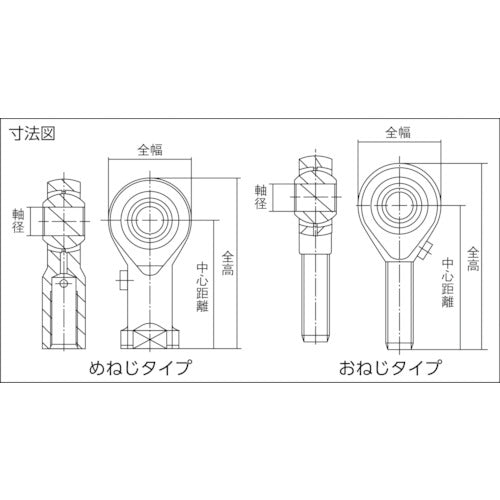

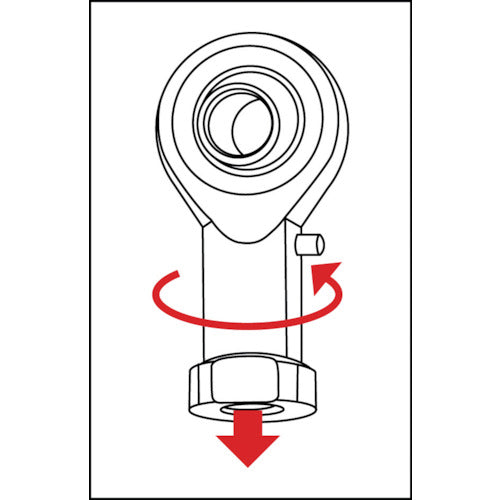

Catalog number: PHSL22 Features: ●Excellent wear resistance, corrosion resistance, and rigidity. ●The grease nipple on the body can be used to lubricate the sliding surface. Applications: ●Conveyor machinery parts, machine tool parts, FA equipment, packaging, textile, and agricultural machinery parts, robot parts. Specifications: ●Shaft diameter (mm): 22 ●Overall width (mm): 54 ●Center distance (mm): 84 ●Overall height (mm): 111 ●Thread dimensions: M22 x 1.50 ●Basic dynamic load rating (kN): 38 ●Lubricated ●Operating temperature range: -50 to 230°C ●Internal thread type (left-handed thread) Materials/Finish: ●Body: Steel ●Race: Special copper alloy ●Ball: High carbon chromium bearing steel Caution: ●Use a lubrication nozzle for drive-in nipples. ●Recommended nozzle: HSP-3 (Order code: 112-8159)
