TRUSCO Rod End Oil-Refillable 6mm Thread (2 Pieces) PHS6 1 Box

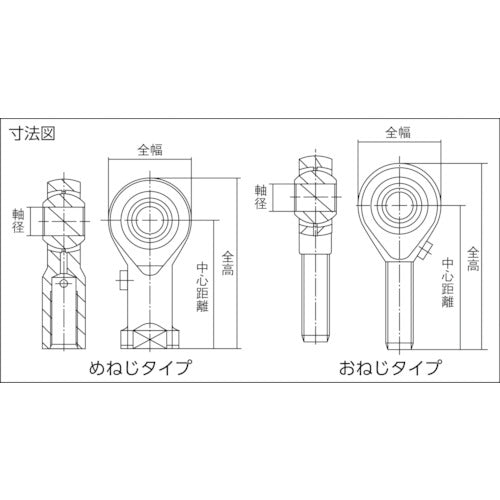

Catalog number: PHS6 Features: ●Excellent wear resistance, corrosion resistance, and rigidity. ●The grease nipple on the body can be used to lubricate the sliding surface. Applications: ●Conveyor machinery parts, machine tool parts, FA equipment, packaging, textile, and agricultural machinery parts, robot parts. Specifications: ●Shaft diameter (mm): 6 ●Overall width (mm): 20 ●Center distance (mm): 30 ●Overall height (mm): 40 ●Thread dimensions: M6 x 1.00 ●Basic dynamic load rating (kN): 4.3 ●Oil-lubricated ●Operating temperature range: -50 to 150°C ●Internal thread type (right-hand thread) Materials/Finish: ●Body: Steel ●Race: Special copper alloy ●Ball: High carbon chromium bearing steel Caution: ●Use an oiling nozzle for drive-in nipples. ●Recommended nozzle: HSP-3 (Order code: 112-8159)
