TRUSCO Rotary table outer diameter 200mm HV-8 1 unit

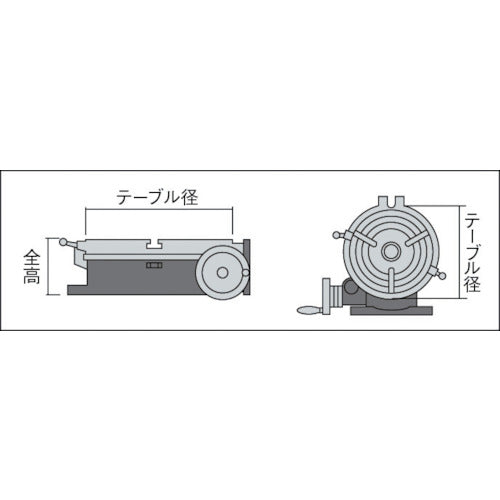

Catalog number: HV-8 Features: ● Attached to a table, ideal for arc cutting, boring, and countersinking, and can also be used vertically. ● The table rotates 4° per one turn of the handle. Applications: ● For accurate angle indexing. Specifications: ● Table diameter (mm): 200 ● Overall height (mm): 103 ● Indexing accuracy: up to 10 seconds ● Compatible chuck: Victor TC165F (6 inches) ● Keyway (mm): 14 ● Load capacity (kg): 60 ● Vertical load capacity (kg): 30 ● Surface accuracy ±0.02mm or less Set contents/accessories: ● T-bolt ● Handle Note: ● Flange, bolt, and nut set, and central calibration axis for rotary tables are optional and sold separately.
