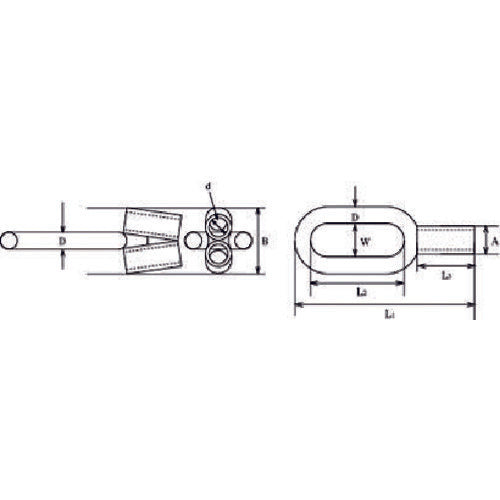

Catalog number: TWCR-1 Features: ● Prevents wear when the end of a wire rope is eye-processed for use. Applications: ● Prevents wear on the wire when the end of a wire rope is eye-processed for use. ● For ropes with a diameter of 6.5 mm Specifications: ● Suitable rope diameter (mm): 6.5 ● A (mm): 10 ● B (mm): 23 ● D (mm): 6 ● d (mm): 6.5 ● L1 (mm): 65.5 ● L2 (mm): 34 ● L3 (mm): 20 ● W (mm): 15 Material/Finish: ● Stainless steel (SUS304)
