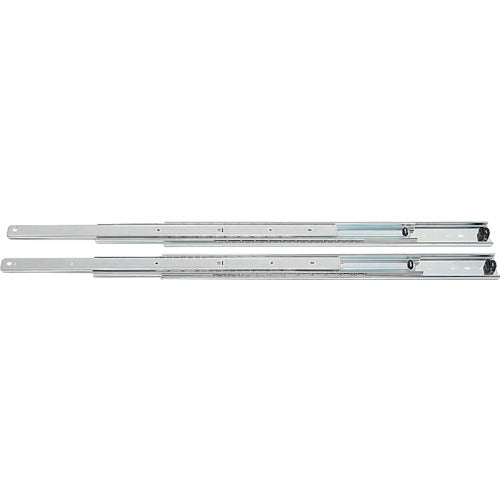

TRUSCO 3-stage sliding rail for heavy loads, 609.6 mm, 2 pieces, SL9000-24-2SET 1 S

Catalog number: SL9000-24-2SET Features: ● 2 pieces per bag! We pursued the unit price per piece. ● 3-stage sliding rail that allows the inner member to be pulled out completely. ● The inner member can be removed by operating the lever. ● It is simply held when the rail is fully closed. ● Equipped with a sequential mechanism that opens and closes the middle member and inner member in an orderly manner. Applications: ● For pulling out factory equipment, machinery, etc. Specifications: ● Width (mm): 19.1 ● Height (mm): 53 ● Length (mm): 609.6 ● Travel distance (mm): 635 ● Rated load (N) pair/vertical: 764 ● ● Recommended screw: M4 bind screw or M4 truss screw Material/Finish: ● Steel (glossy chromate treatment)
