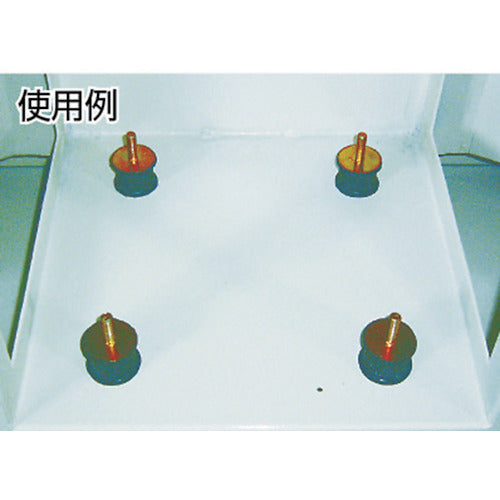

TRUSCO Round Anti-Vibration Rubber, Single Bolt Type, Maximum Load 1950N, TB505, 1 Piece

Catalog number: TB505 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined placement. ●Comes with hexagonal nut and spring washer. ●The rubber surface that comes into direct contact with the floor has a unique pattern, which improves grounding efficiency and vibration-proofing effect. ●Due to the unique pattern of the rubber surface, it hits softly at the time of collision and is effective in absorbing and reducing impact force. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 315 ●Allowable load (N): 1950 ●Rubber height (mm): 35 ●Thread dimensions: M12 x 1.75 ●Mounting shaft length (mm): 37 ●Rubber hardness: 60° ●External dimensions (mm): 69 ●Shape: Single bolt type ●Allowable load (kgf): 198.9 ●Single bolt type Material/Finish: ●Rubber: Natural rubber (NR) ●Metal fittings: General structural rolled steel
