TRUSCO Round Anti-Vibration Rubber, Single Bolt Type, Maximum Load 295N, TB502, 1 Piece

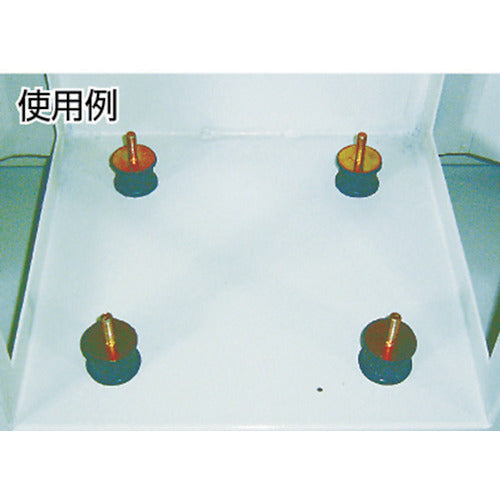

Catalog number: TB502 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined placement. ●Comes with hexagonal nut and spring washer. ●The rubber surface that comes into direct contact with the floor has a unique pattern, which improves grounding efficiency and vibration-proofing effect. ●Due to the unique pattern of the rubber surface, it hits softly at the time of collision and is effective in absorbing and reducing impact force. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 115 ●Allowable load (N): 295 ●Rubber height (mm): 15 ●Thread dimensions: M8 x 1.25 ●Mounting shaft length (mm): 23 ●Rubber hardness: 60° ●External dimensions (mm): 29 ●Shape: Single bolt type ●Allowable load (kgf): 30.1 ●Single bolt type Material/Finish: ●Rubber: Natural rubber (NR) ●Metal fittings: General structural rolled steel
