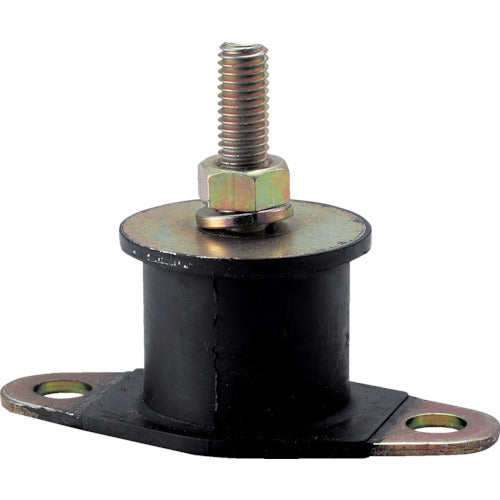

TRUSCO Round Anti-Vibration Rubber, Single Washer Type, Maximum Load 1550N, TA709, 1 Piece

Catalog number: TA709 Features: ●Due to the high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 420.0 ●Allowable load (N): 1550 ●Rubber height (mm): 25 ●Thread dimensions: M10 x 1.50 ●Mounting hole diameter (mm): 11 ●Mounting pitch (mm): 73 ●Mounting shaft length (mm): 27 ●Rubber hardness: 60° ●External dimensions (mm): 46 ●Allowable load (kgf): 158.1 ●Single washer type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
