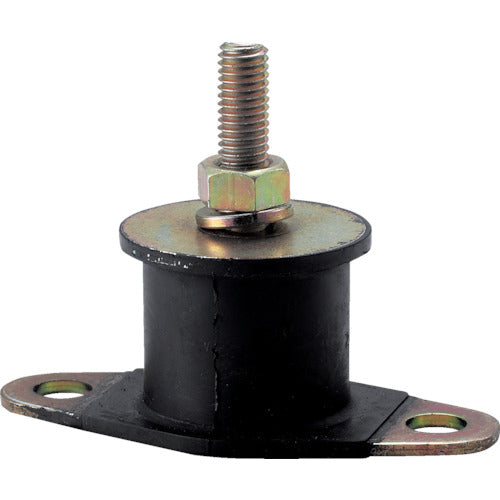

TRUSCO Round Anti-Vibration Rubber, Single Washer Type, Maximum Load 3350N, TA712, 1 Piece

Catalog number: TA712 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with a hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 520.0 ●Allowable load (N): 3350 ●Rubber height (mm): 40 ●Thread dimensions: M12 x 1.75 ●Mounting hole diameter (mm): 14 ●Mounting pitch (mm): 100 ●Mounting shaft length (mm): 37 ●Rubber hardness: 60° ●External dimensions (mm): 69 ●Allowable load (kgf): 341.7 ●Single washer type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
