TRUSCO Round Anti-Vibration Rubber, Single Washer Type, Maximum Load 345N, TA703, 1 Piece

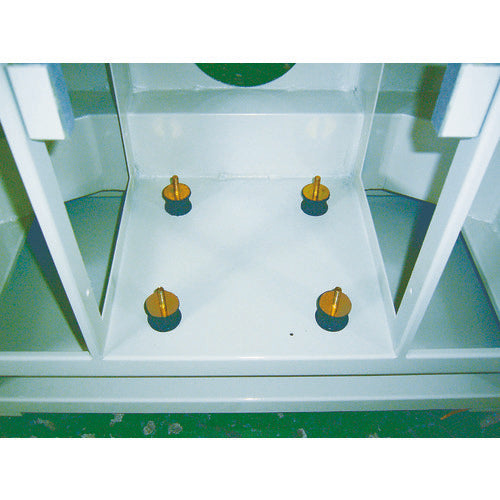

Catalog number: TA703 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with a hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 135.0 ●Allowable load (N): 345 ●Rubber height (mm): 16 ●Thread dimensions: M6 x 1.00 ●Mounting hole diameter (mm): 7 ●Mounting pitch (mm): 42 ●Mounting shaft length (mm): 19 ●Rubber hardness: 60° ●External dimensions (mm): 25 ●Allowable load (kgf): 35.2 ●Single washer type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
