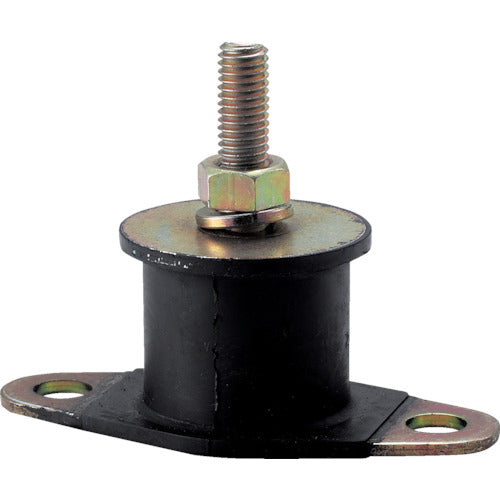

TRUSCO Round Anti-Vibration Rubber, Single Washer Type, Maximum Load 390N, TA705, 1 Piece

Catalog number: TA705 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with a hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 83.5 ●Allowable load (N): 390 ●Rubber height (mm): 30 ●Thread dimensions: M8 x 1.25 ●Mounting hole diameter (mm): 9 ●Mounting pitch (mm): 48 ●Mounting shaft length (mm): 23 ●Rubber hardness: 60° ●External dimensions (mm): 29 ●Allowable load (kgf): 39.8 ●Single washer type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
