TRUSCO Round Anti-Vibration Rubber Double Bolt Type Maximum Load 1050N TA511 1 pc

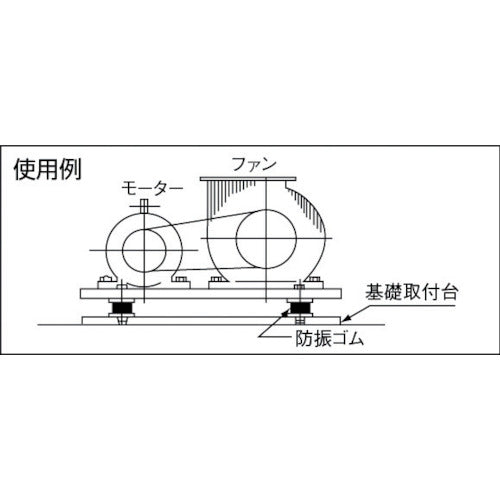

Catalogue number: TA511 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with a hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 165.0 ●Allowable load (N): 1050 ●Rubber height (mm): 40 ●Thread dimensions: M10 x 1.50 ●Mounting shaft length (mm): 27 ●Rubber hardness: 60° ●External dimensions (mm): 46 ●Shape: Double-bolted type ●Allowable load (kgf): 107.1 ●Double-bolted type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
