TRUSCO Round Anti-Vibration Rubber Double Bolt Type Maximum Load 1350N TA510 1 pc

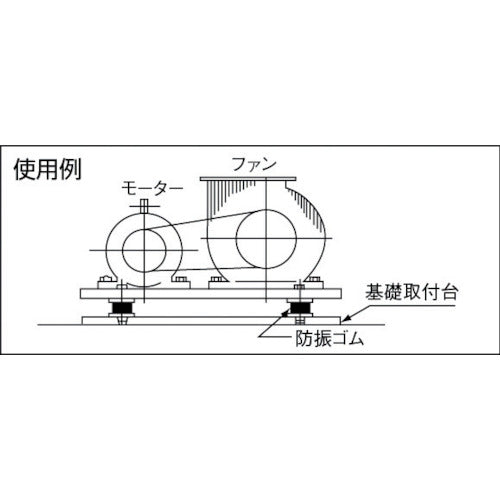

Catalog number: TA510 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 285.0 ●Allowable load (N): 1350 ●Rubber height (mm): 30 ●Thread dimensions: M10 x 1.50 ●Mounting shaft length (mm): 27 ●Rubber hardness: 60° ●External dimensions (mm): 46 ●Shape: Double-bolted type ●Allowable load (kgf): 137.7 ●Double-bolted type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
