TRUSCO Round Anti-Vibration Rubber Double Bolt Type Maximum Load 2750N TA513 1 pc

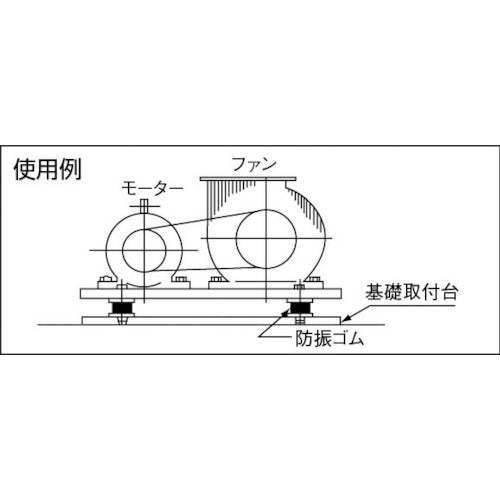

Catalogue number: TA513 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 295.0 ●Allowable load (N): 2750 ●Rubber height (mm): 55 ●Thread dimensions: M12×1.75 ●Mounting shaft length (mm): 37 ●Rubber hardness: 60° ●External dimensions (mm): 69 ●Shape: Double-bolted type ●Allowable load (kgf): 280.5 ●Double-bolted type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
