TRUSCO Round Anti-Vibration Rubber Double Bolt Type Maximum Load 5200N TA514 1 pc

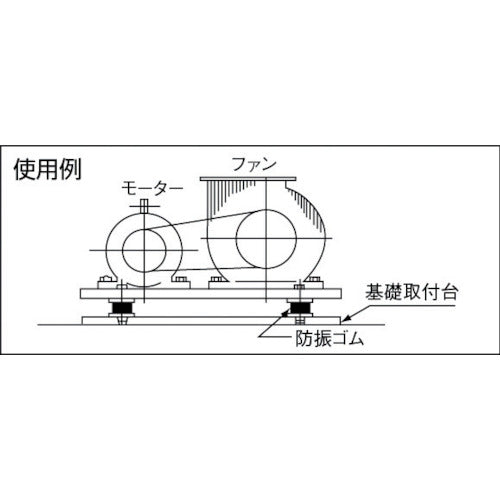

Catalogue number: TA514 Features: ●Due to its high spring constant, it can be used for small size and heavy loads. ●It has a wide range of applications such as inclined arrangement. ●Comes with a hexagonal nut and spring washer. Applications: ●Pumps, various machine tools, centrifuges, crushers, engines, and other general industrial machines. Specifications: ●Spring constant (N/mm): 520.0 ●Allowable load (N): 5200 ●Rubber height (mm): 60 ●Thread dimensions: M16×2.00 ●Mounting shaft length (mm): 45 ●Rubber hardness: 60° ●External dimensions (mm): 90 ●Shape: Double-bolted type ●Allowable load (kgf): 530.4 ●Double-bolted type Material/Finish: ●Rubber: Natural rubber (NR) ●Hardware: General structural rolled steel
