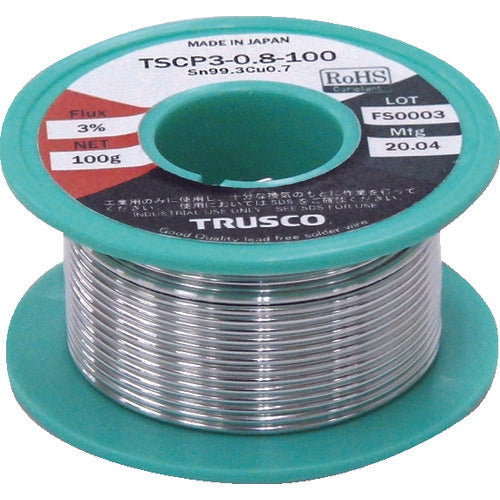

TRUSCO Low-cost lead-free solder (with resin) 100G0.8 TSCP3-0.8-100 1 roll

Catalog number: TSCP3-0.8-100 Features: ●High cost performance. ●Environmentally friendly lead-free flux cored solder. ●・Wets and spreads in a short time, and does not produce ridges. ●・High quality soldering is possible with little scattering. ●・Environmentally friendly lead-free solder. Applications: ●For connecting electronic components and electronic devices. Specifications: ●Wire diameter (mm): 0.8 ●Melting point (℃): 227 ●Flux type: JIS-A, MIL-RMA ●Lead-free solder compatible: Compatible ●Halide content (mass%): 0.11 ●Halogen element content: Yes ●Flux content (mass%): 3 ●Aqueous solution resistivity (Ωm): 1000 or more ●JIS-A class Material/Finish: ●Alloy composition (tin: 99.3%, copper: 0.7%) Caution: ●・Cannot be used on sheet metal or machine parts. ●・Do not use for purposes other than soldering. ●・When soldering, perform the work in a place equipped with local exhaust equipment. ● If solder or flux comes into contact with any worker, take immediate action.
