TRUSCO Fully enclosed aluminum blade industrial fan Zephyr cube type TFZPA-45Z 1 unit

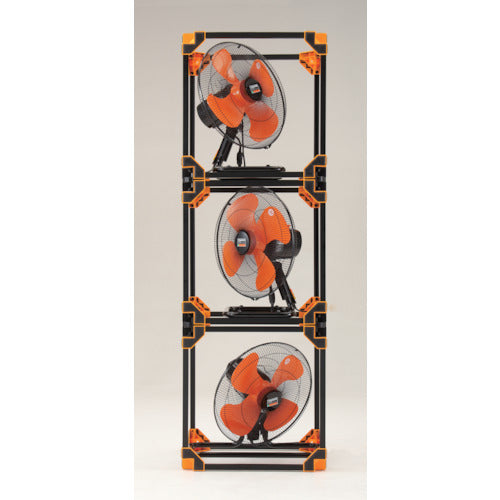

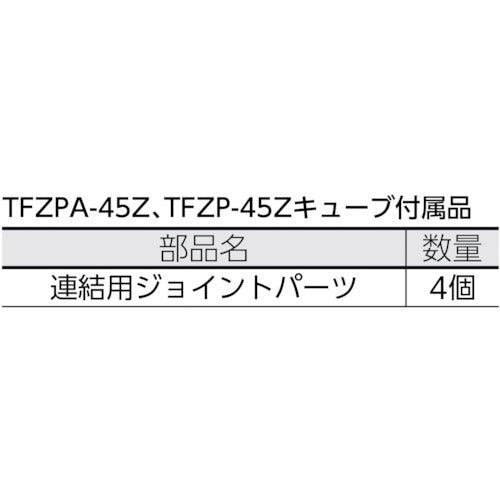

Catalogue number: TFZPA-45Z Features: ●Can be connected vertically, horizontally, and upwards, and can also blow air downwards. ●Uses a fully enclosed, long-life motor. ●Includes a built-in thermal protector to prevent the motor from burning out. ●Can be connected vertically and horizontally with special joint parts, and can also be used upwards and downwards, allowing for a variety of patterns. ●The shape can be changed to suit the purpose of use by replacing the leg angles. Applications: ●Ventilation for factories, warehouses, etc. Specifications: ● Power supply (V): Single phase 100 ● Power consumption (W) (50/60Hz): 155/190 ● Blade diameter (cm): 44 ● Width (mm): 632 ● Depth (mm): 632 ● Height (mm): 632 ● Power cord length (m): 2 ● Blade material: Aluminum ● Replacement blade: TFP-45-10A ● Swing: Yes ● Airflow adjustment: 3 levels ● Airflow (［［M3］］/min): Strong (50Hz/60Hz): 225/245 Medium (50Hz/60Hz): 175/190 Weak (50Hz/60Hz): 158/154●Standard power consumption charge (50Hz): 4.8 yen/h●Standard power consumption charge (60Hz): 5.8 yen/h●Blades: 4 (aluminum)●Standard power consumption charge: 4.2 yen/h (50Hz)/5.1 yen/h (60Hz)●Power cord: 2m (earthed)●Up and down angle: 45° (upward 40°, downward 5°)●Airflow adjustment: 3 levels (strong, medium, weak)●Warranty period: 5 years●Designed standard usage period: 10 years●Replacement parts: Aluminum blades (product number: TFP-45-10A), blade guard (product number: TFP-45G)●Noise level (50/60Hz): Strong: 62/66dB, Medium: 61/63dB, Weak: 58/58dB●2013 Good Design Award winner Material/Finish: ● Spread: Aluminum ● Legs (pipe): Steel ● Frame: Aluminum (hard anodized) ● Corner joint: Resin Set contents/Accessories: ● Joint parts for connection (4 pieces) Note: ● Up to 3 units can be connected vertically. ● The "warranty period" is 5 years from the date of purchase. If the product breaks down under normal use within 5 years from the date of purchase, we will repair it free of charge. The "designed standard usage period" is the period from the time of manufacture, not the period from purchase. Please note that we are not obligated to provide free repairs or free replacements. This is merely a design guideline and is not the product warranty period.
