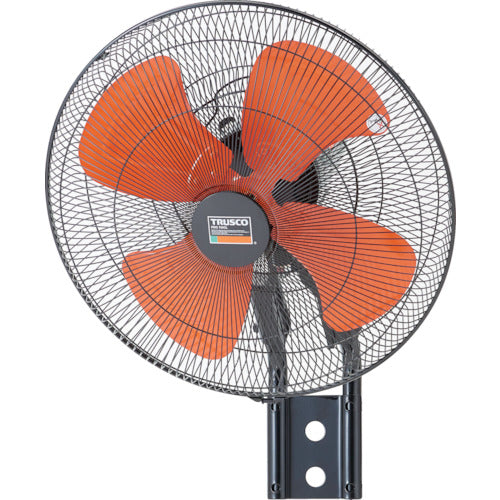

TRUSCO Fully enclosed aluminum blade industrial fan Zephyr wall-mounted type TFZPA-45W 1 unit

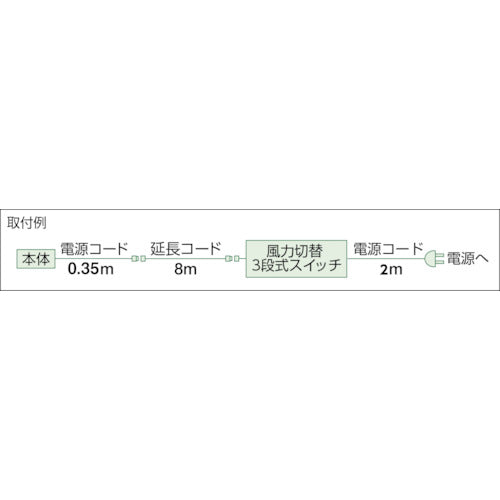

Catalogue number: TFZPA-45W Features: ●Easy installation as only the angle can be attached first. ●Includes a primary side extension cable, allowing switch operation at hand. ●Uses a fully enclosed, long-life motor. ●Includes a built-in thermal protector to prevent motor burnout. ●Includes a primary side extension cable (8m), allowing operation from a distance. ●The shape can be changed to suit the purpose of use by replacing the leg angles. Applications: ●Ventilation for factories, warehouses, etc. Specifications: ● Power supply (V): Single phase 100 ● Power consumption (W) (50/60Hz): 155/190 ● Blade diameter (cm): 44 ● Width (mm): 511 ● Depth (mm): 494 ● Height (mm): 543 ● Power cord length (m): 2 ● Installation type: Wall-mounted ● Blade material: Aluminum ● Replacement blade: TFP-45-10A ● Swing: Yes ● Airflow adjustment: 3 levels ● Airflow (［［M3］］/min): Strong (50Hz/60Hz): 225/245 Medium (50Hz/60Hz): 175/190 Weak (50Hz/60Hz): 158/154●Standard power consumption charge (50Hz): 4.8 yen/h●Standard power consumption charge (60Hz): 5.8 yen/h●Blades: 4 (aluminum)●Standard power consumption charge: 4.2 yen/h (50Hz)/5.1 yen/h (60Hz)●Power cord: 2m (earthed)●8m extension cord included●Up and down movement angle: 45° (upward 40°, downward 5°)●Air volume adjustment: 3 levels (strong, medium, weak)●Warranty period: 5 years●Designed standard usage period: 10 years●Replacement parts: Aluminum blades (product number: TFP-45-10A), blade guard (product number: TFP-45G)●Noise level (50/60Hz): Strong: 62/66dB, Medium: 61/63dB, Weak: 58/58dB Material/Finish: ●Blades: Aluminum ●Legs: Steel Note: ●The "warranty period" is 5 years from the date of purchase. If the fan breaks down under normal use within 5 years from the date of purchase, we will repair it free of charge. The "designed standard usage period" is the period from the time of manufacture, not the period from purchase. Please note that we are not obligated to provide free repairs or free replacements. This is only a design guideline and is not the product warranty period. ●Bolt washers are not included. ●Do not use the power cord stretched taut from the plug to the main unit. Unexpected load on the power cord may cause it to break, resulting in a fire or electric shock. In particular, be sure to check the power cord carefully when installing it so that it does not become taut when swinging. ●When using the included extension cord to separate the switch box from the fan body, be sure to fix the switch box to a wall or other object before using it. If the switch box is used while hanging, the power cord may be damaged by unexpected load, resulting in a fire or electric shock.
