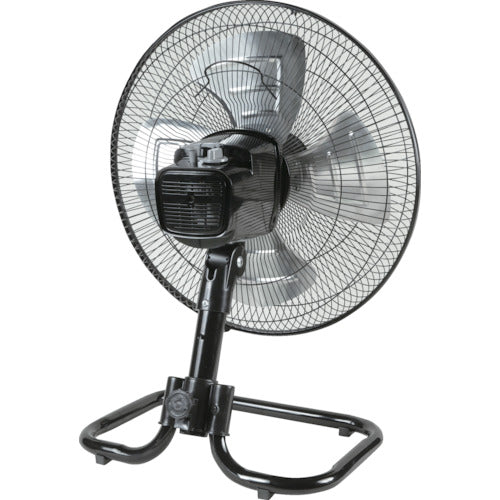

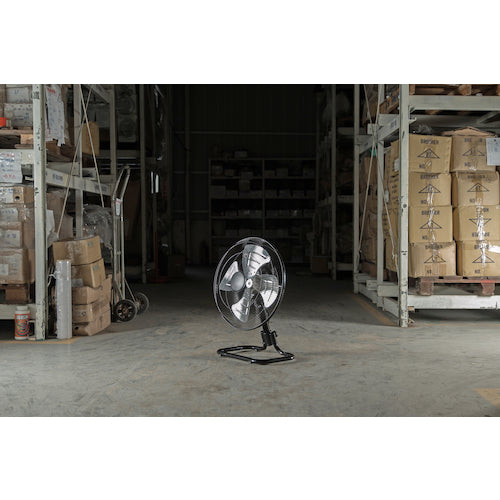

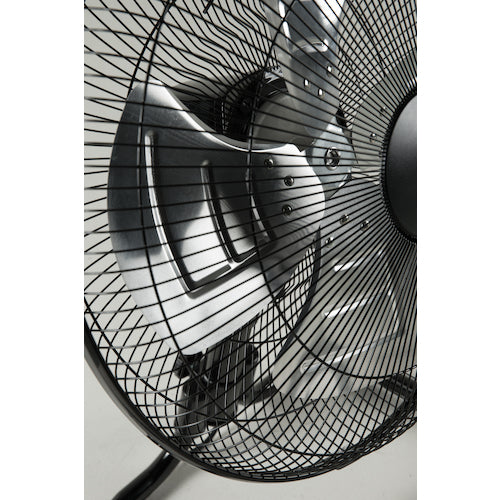

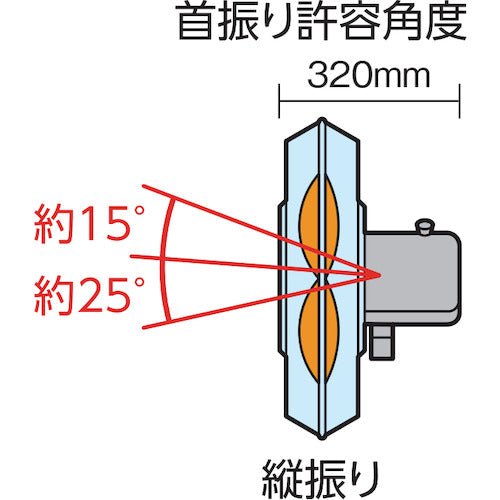

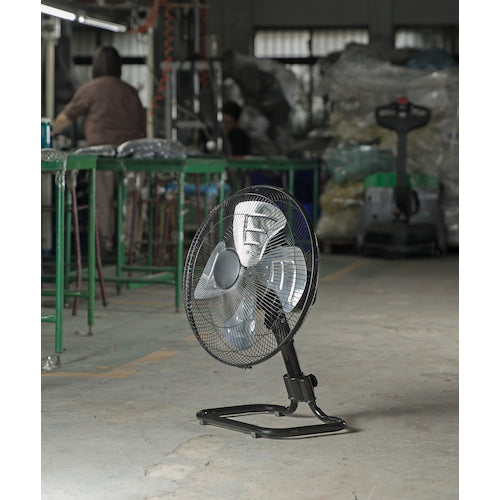

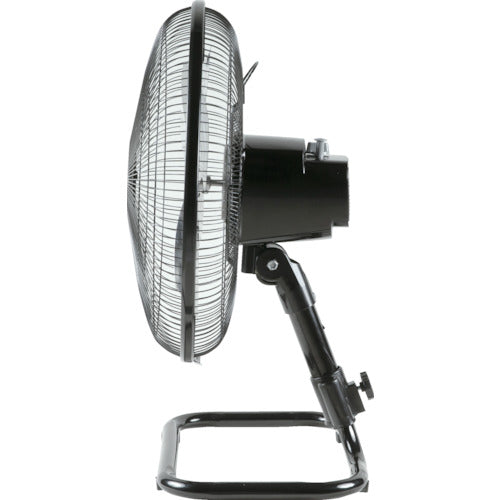

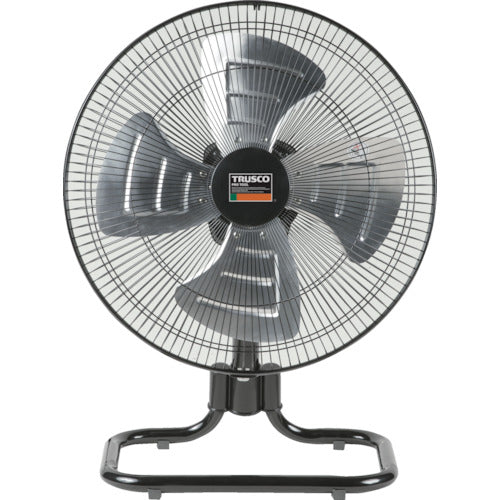

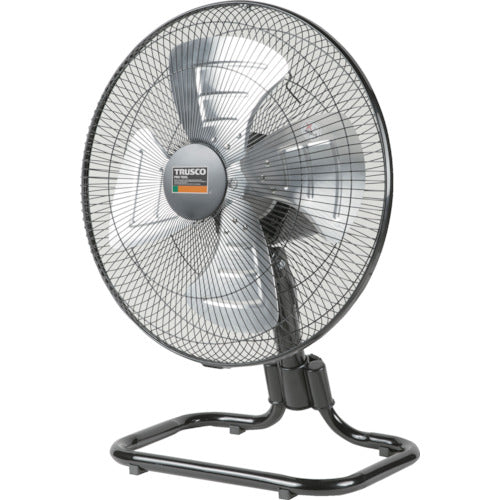

Catalog number: TFBA-45A-BK Features: ● The fully enclosed motor prevents dust from entering the motor. ● The aluminum blade is resistant to cracking even with oil mist or high-frequency interference, allowing for safe use even in harsh field environments. ● A thermal protector (resettable overheat protection device) is built into the motor coil to prevent the motor from burning out, protecting the device from abnormal overheating caused by overload. ● A current fuse is used to cut off the circuit and protect the device when abnormal current (overcurrent) occurs due to short circuit, overvoltage, etc. ● Comes with a convenient carrying handle. ● Height is adjustable. Uses: ● For ventilation in factories and work sites. ● Compact type that can be placed on a desk or workbench. Specifications: ● Power supply (V): Single phase 100 ● Power consumption (W) (50/60Hz): 125/150 ● Blade diameter (cm): 45 ● Width (mm): 515 ● Depth (mm): 365 ● Height (mm): 615-665 ● Power cord length (m): Approximately 2.5 ● Installation type: Stationary ● Color: Black ● Blade material: Aluminum ● Replacement blade: TFBA-45-10A ● Swing: Yes ● Airflow adjustment: 3 levels (strong, medium, weak) ● Airflow (［［M3］］/min): ( 50/60Hz) Strong 170/172 Medium 147/148 Weak 132/109 ● Maximum air volume (m3/min) (50Hz): 170 ● Maximum air volume (m3/min) (60Hz): 172 ● Standard power consumption charge (50Hz): 3.9 yen/h ● Standard power consumption charge (60Hz): 4.7 yen/h ● Noise level (dB) (50/60Hz): 64/66 ● Blades: 4 (aluminum) ● Warranty period: 1 year ● Designed standard use period: 5 years Material/Finish: ● Blades: Aluminum Note: ● The "warranty period" is 1 year from the date of purchase. ● If the product breaks down under normal use conditions within 1 year from the date of purchase, we will repair it free of charge. ● The "designed standard use period" is the period from the time of manufacture, not the period from purchase. ● Please note that we are not obligated to provide free repairs or free replacements. ●This is only a design guideline and is not the product warranty period.
