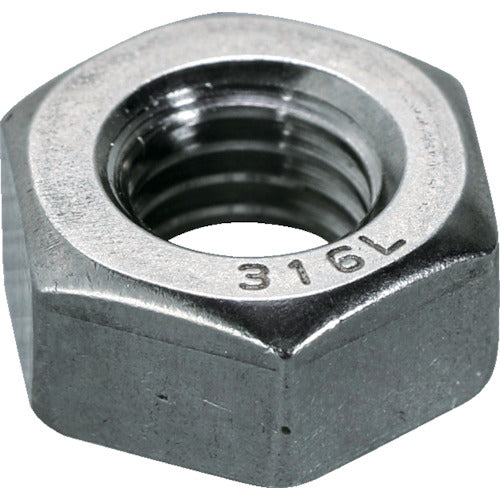

TRUSCO Hexagon Nut Type 1 SUS316L M20 x 2.5 2 Pieces (Stainless Steel) B132-0020 1 PK

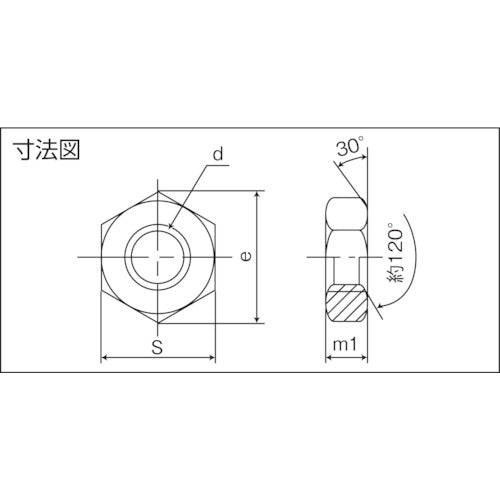

Catalog number: B132-0020 Features: ●A standard hexagonal nut with chamfered edges on one side. ●SUS316L has enhanced corrosion resistance (intergranular corrosion resistance) against seawater and various highly corrosive media. Specifications: ●Nominal diameter: M20 x 2.50 ●Two-sided width dimension (mm): 30 ●Height (mm): 16 ●Nut type: Type 1 nut ●Strength classification: Equivalent to A4-70 ●Thread pitch (mm): 2.5 ●Dimension (mm) B: 30.0 ●Dimension (mm) C: 34.6 ●Dimension (mm) e: 34.6 ●Dimension (mm) k: 16.0 ●Dimension (mm) s: 30.0 ●Two-sided width B (mm): 30.0 ●Package: Bolt-on pack (blister) ●Nut type 1 (height: 80% of thread diameter, one-sided chamfered) Material/Finish: ●Stainless steel (SUS316L)
