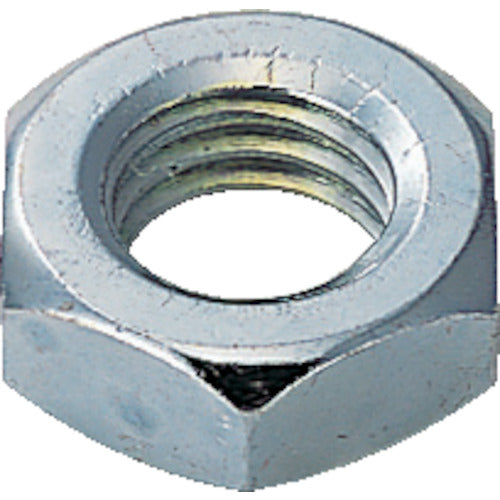

TRUSCO Hexagon Nuts 3 Types Unichrome M6 x 1.0 180 Pieces B56-0006 1 PK

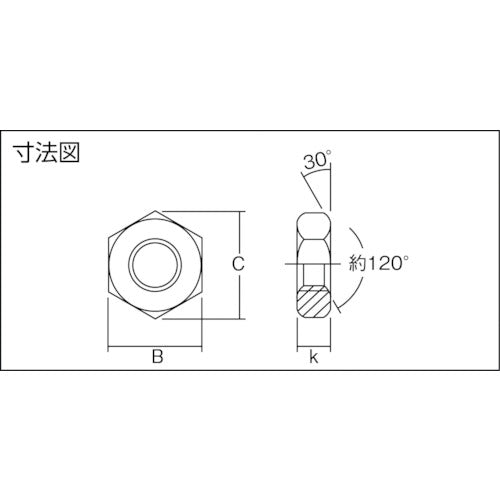

Catalog number: B56-0006 Features: ●A standard hexagonal nut with chamfers on both sides. Specifications: ●Nominal diameter: M6 x 1.00 ●Two-sided width dimension (mm): 10 ●Height (mm): 3.6 ●Nut type: 3-type nut ●Strength category: 4T (compatible bolt strength category: 3.6, 4.6, 4.8) ●Dimension (mm) B: 10.0 ●Dimension (mm) C: 11.5 ●Dimension (mm) e: 11.5 ●Dimension (mm) k: 3.6 ●Dimension (mm) m: 3.6 ●Dimension (mm) s: 10.0 ●Package: Bolt-on pack (blister) ●3-type nut (height: 60% of thread diameter, chamfers on both sides) Material/Finish: ●Mild steel wire (SWCH10R) ●Surface treatment: Nickel-plated finish
