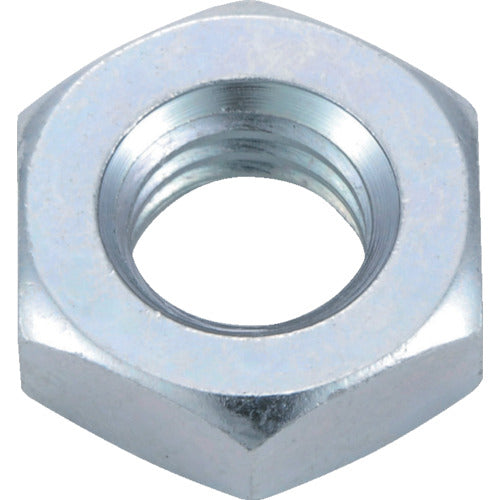

TRUSCO Hexagon Nut Type 3 Trivalent White M16 x 2.0 5 Pieces B756-0016 1 PK

TRUSCO Hexagon Nut Type 3 Trivalent White M16 x 2.0 5 Pieces B756-0016 1 PK

JAN：4989999294972 　
Hardware and building materials Hexagon Nut nut Screws, bolts and nuts TRUSCO Bolt
¥563
¥563
Sale Sold out
Shipping calculated at checkout.

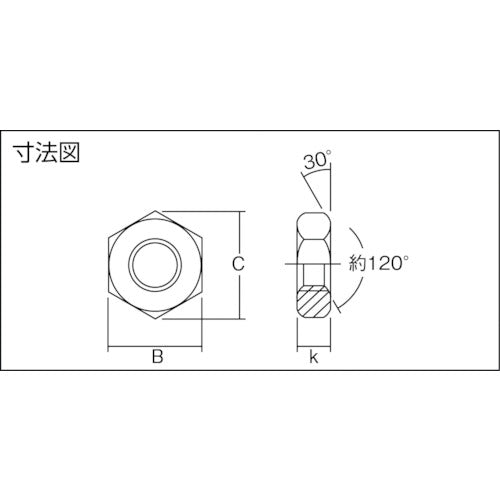

Catalog number: B756-0016 Features: ●Trivalent chromate product with low environmental impact. Specifications: ●Nominal diameter: M16 x 2.00 ●Two-sided width dimension (mm): 24 ●Height (mm): 10 ●Nut type: 3-type nut ●Strength category: 4T (compatible bolt strength category: 3.6, 4.6, 4.8) ●Dimension (mm) B: 24.0 ●Dimension (mm) C: 27.7 ●Dimension (mm) e: 27.7 ●Dimension (mm) k: 10.0 ●Dimension (mm) m: 10.0 ●Dimension (mm) s: 24.0 ●Package: Bolt pack (blister) ●3-type nut (height: 60% of thread diameter, chamfered on both sides) Material/Finish: ●Mild steel wire (SWCH10R) ●Surface treatment: Trivalent chromate finish (white)
