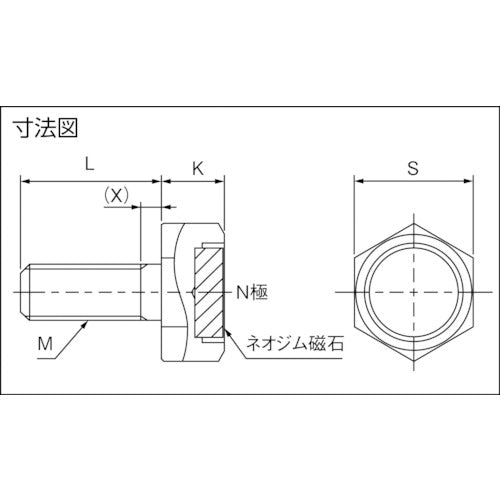

Catalog number: TNBMG-520 Features: ● A neodymium magnet is built into the head, so even though it is small, it exerts a strong magnetic force and adheres to the object. ● Can be installed using existing tapped holes or from the front. ● Easy to install and suitable for narrow spaces. Applications: ● Use the shape of the hexagonal bolt to attach to products or jigs or for adhesion purposes. Specifications: ● Adhesive force (N): 27 ● Magnet diameter (mm): 7 ● S (mm): 10 ● K (mm): 7 ● L (mm): 20 ● X (mm): 2 ● Nominal screw diameter M: M5 ● Maximum operating temperature: 80°C ● No hardening Material/Finish: ● Magnet: Neodymium magnet ● Body: Iron (SUM, no hardening) ● Surface treatment: Electroless nickel plating
