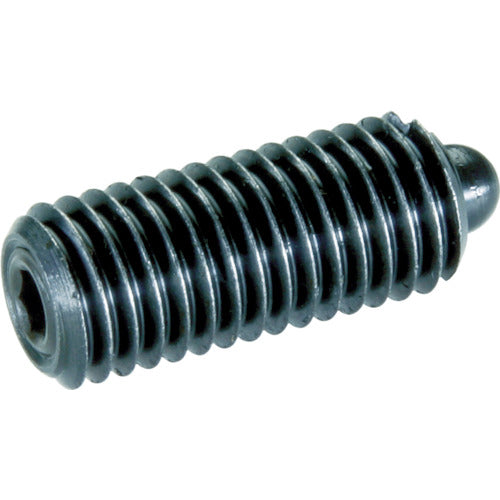

TRUSCO Hexagonal Socket Spring Plunger M6 Steel Pin T6PN 1 pc
TRUSCO Hexagonal Socket Spring Plunger M6 Steel Pin T6PN 1 pc
Regular price
¥460
Regular price
Sale price
¥460
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

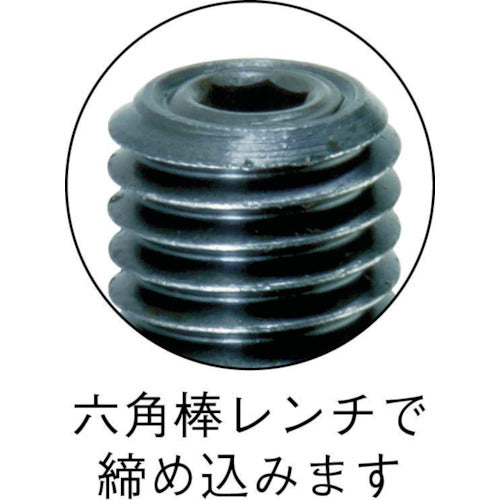

Catalog number: T6PN Features: ● A spring plunger with a steel body and pin, hexagonal hole (back) and minus groove (front). Applications: ● Used for positioning, fixing, pressing, and pushing away. Specifications: ● Load (N): 6.0-19.0 ● Screw dimensions: M6 x 1.00 ● Stroke (mm): 2.5 ● Total length (mm): 20 ● Center pin diameter (mm): 2.7 ● Heat resistance temperature (℃): 250 Material/Finish: ● Body: Steel ● Center pin: Steel, hardened
