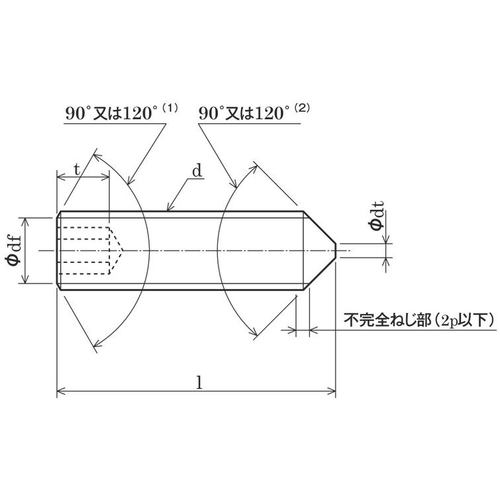

Catalog number: Y301-0525 Features: ●The pointed tip bites deeply into the mating material, making it suitable for semi-permanent installation. ●It can be tightened with a hex wrench, making it ideal for machine assembly. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 25 ●Thread pitch (mm): 0.8 ●Thread length (mm): 25 ●Strength category: A2 ●Tip shape: pointed tip ●Hexagonal hole opposite side dimension (mm): 2.5 ●Hexagonal hole opposite side (s): 2.5 ●Package: Bolt pack (blister) Material/Finish: ●Stainless steel (SUSXM-7)
