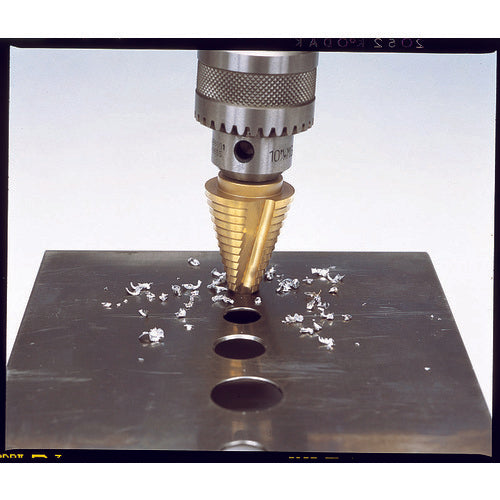

Catalog number: NMS-18G Features: ●Titanium coating with excellent heat resistance for long life. ●With tip thinning, it bites lightly and there is no point slippage. Applications: ●Cutting material: Iron plate, copper plate (up to 2 mm), aluminum plate, wood, resin (up to 3-4 mm), stainless steel plate (up to 1 mm). Specifications: ●Step width (mm): 3 (5) ●Number of steps (steps): 8 ●Shank diameter (mm): 6.35 ●Drilling dimensions (φ): 4, 6, 8, 10, 12, 14, 16, (18) ●Surface treatment: Titanium coating Material/Finish: ●Cobalt high speed steel Set contents/Accessories: ●Cutting oil Note: ●The size shown in () for the drilling dimensions is the step width (number of steps). ●Cobalt and inorganic compounds are designated as specific chemical substances, but they are exempt from the application of regulations because they do not emit dust amounts that cause health problems during normal use.
