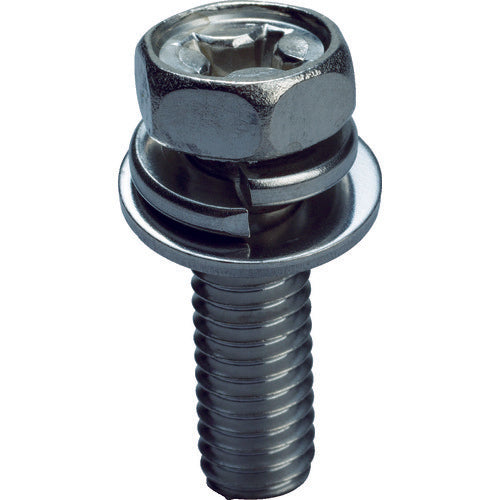

TRUSCO Cross recessed upset assembly P=3 Stainless steel M4 x 25 44 pieces / (+) upset bolt with spring washer and JIS washer Y336-0425 1 PK

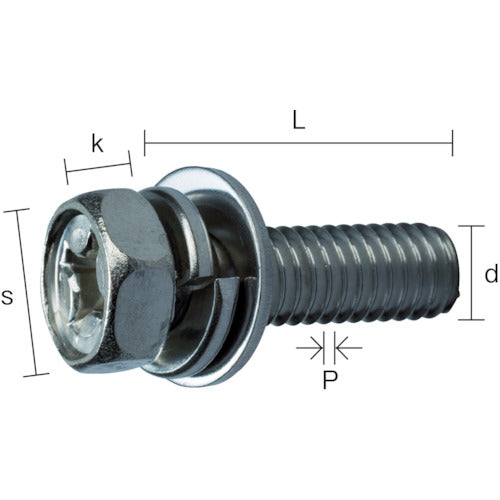

Catalogue number: Y336-0425 Features: ●Upset type cross recessed hex bolt with built-in washer and spring washer. ●Built-in washer and spring washer improves work efficiency. ●Both wrenches and cross head drivers can be used for tightening. ●Made of stainless steel, it has excellent corrosion resistance. Specifications: ●Dimensions (mm) d: M4 ●Dimensions (mm) L: 25 ●Thread pitch (mm): 0.7 ●Spring washer outer diameter (mm): 7 ●Spring washer thickness (mm): 1 ●Flat washer outer diameter (mm): 10 ●Flat washer thickness (mm): 0.8 ●Strength category: A2-50 ●Two-sided width dimension (mm): 7 ●Hexagonal section height (mm): 2.8 ●Package: Bolt pack (blister) Material/Finish: ●Stainless steel
