トラスコ中山（株）

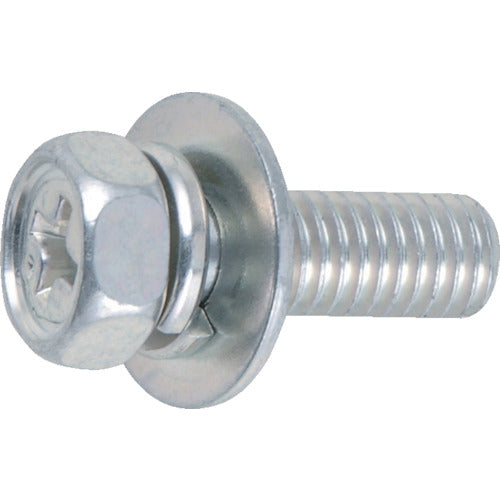

TRUSCO Cross recessed upset assembly P=3 Trivalent white M5 x 20 26 pieces / (+) upset bolt with spring washer + JIS washer B768-0520 1 PK

TRUSCO Cross recessed upset assembly P=3 Trivalent white M5 x 20 26 pieces / (+) upset bolt with spring washer + JIS washer B768-0520 1 PK

JAN：4989999289824 　
Assembled Bolt Hardware and building materials Hexagonal bolt Screws, bolts and nuts TRUSCO Bolt
¥594
¥594
Sale Sold out
Shipping calculated at checkout.

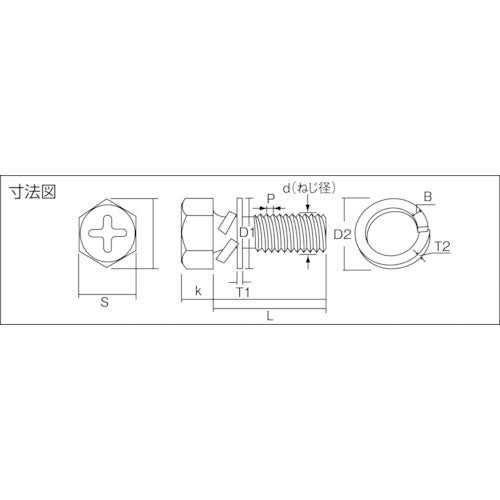

Catalog number: B768-0520 Features: ● Eliminates the need to set washers and spring washers. Specifications: ● Dimensions (mm) d: M5 ● Dimensions (mm) L: 20 ● Thread pitch (mm): 0.8 ● Thread length (mm): 20 ● Spring washer outer diameter (mm): 8.5 ● Spring washer thickness (mm): 1.3 ● Flat washer outer diameter (mm): 12 ● Strength category: 4.8 ● Package: Bolt pack (blister) ● Round washer, spring (P-3 type) included ● Upset type Material/Finish: ● Low carbon steel (SWCH) ● Surface treatment: Trivalent chromate finish (white)
View full details
