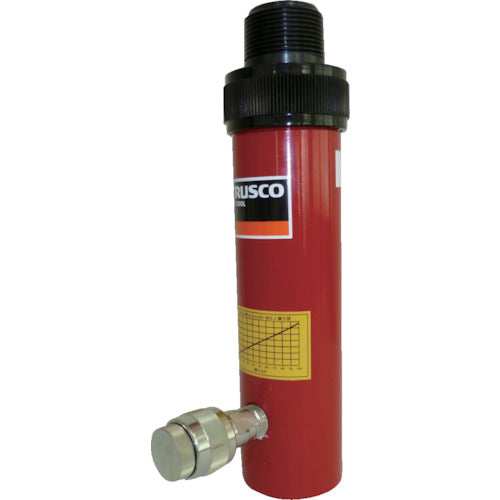

TRUSCO Single-acting cylinder, spring return type, TMCA10-150, 1 unit

Catalogue number: TMCA10-150 Features: ● Built-in return spring allows for smooth operation. ● Single-acting cylinder with ram coupler and plunger saddle. ● Attachments can be attached to the screws on the head, cylinder, and base. Specifications: ● Lifting force (kN): 100 ● Stroke (mm): 150 ● Minimum height (mm): 302 ● Pressure-receiving area (cm2): 14.52 ● Required oil volume (ml): 220 ● Maximum operating pressure (MPa): 70 ● Type: Single-acting ● Compatible hose: TMS-200T ● Cylinder outer diameter (mm): 57 ● Plunger outer diameter (mm): 36 ● Required oil volume (cm3): 220 ● Spring return type ● Maximum operating pressure: 70MPa Material/Finish: ● Steel Set contents/Accessories: ● Ram coupler ● Plunger saddle
