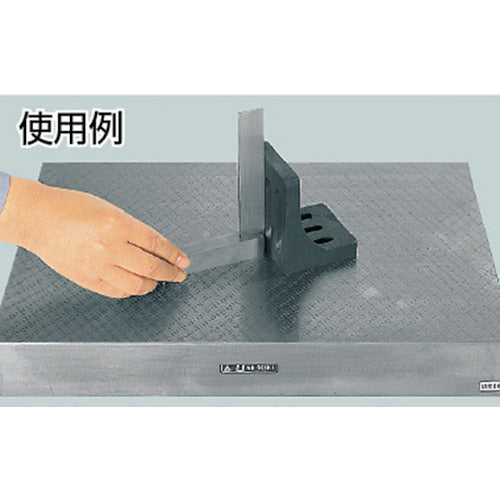

Catalog number: ULA-1000 Features: ●The surface is precision polished. ●The rod and base are firmly attached using a special adhesive method. Applications: ●Class 2: For general assembly and can manufacturing. Specifications: ●Base length (mm): 415 ●Width (mm): 62 ●Base width (mm): 70 ●Thickness (mm): 8.0 ●Base thickness (mm): 52 ●Nominal dimensions (mm): 1000 ●Shape: With base ●Precision: JIS Class 2 (Class 2 ± (20 + L / 10) μm) ●Rod length x base length (mm): 1000 x 415 Material / Finish: ●Carbon tool steel ●Cast iron Note: ●Some specifications have been changed from February 2024. Please check the drawing for details.
