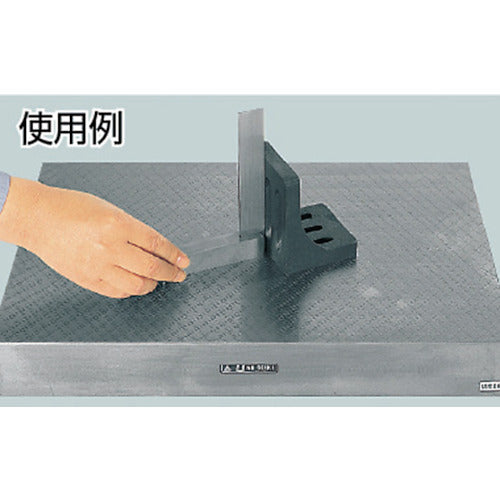

Catalog number: ULA-150 Features: ●The surface used is precision polished. ●The rod and base are firmly attached using a special adhesive method. Applications: ●Class 2: For general assembly and can manufacturing. Specifications: ●Base length (mm): 100 ●Width (mm): 24 ●Base width (mm): 22 ●Thickness (mm): 3.0 ●Base thickness (mm): 19 ●Nominal dimensions (mm): 150 ●Shape: With base ●Precision: JIS Class 2 (Class 2 ± (20 + L / 10) μm) ●Rod length x base length (mm): 150 x 100 Material / Finish: ●Carbon tool steel ●Cast iron Note: ●Some specifications have been changed from February 2024. Please check the drawing for details.
