TRUSCO Square Ring Catch Stainless Steel 8mm TSRC-8 1 pc

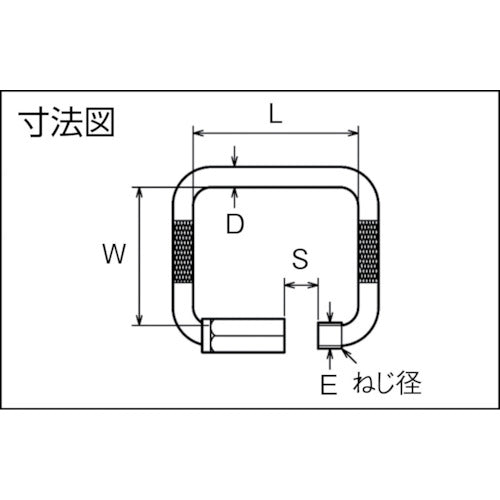

Catalog number: TSRC-8 Features: ●Easy to open and close by simply turning the nut. ●Can connect wide belts to the straight section. Applications: ●As a connecting fitting for flat belt-like objects such as rubber or fiber, and as a joint for terminal fittings. Specifications: ●Working load (kN): 0.78 ●D (mm): 8 ●L (mm): 61 ●S (mm): 11 ●W (mm): 54 ●E (mm): 10.5 ●d (mm): 8 ●Type: With loop ●Single screw type Material/Finish: ●Stainless steel (SUS304) Caution: ●Cannot be used as a safety belt. ●Working load is the value when pulled in the longitudinal direction.
