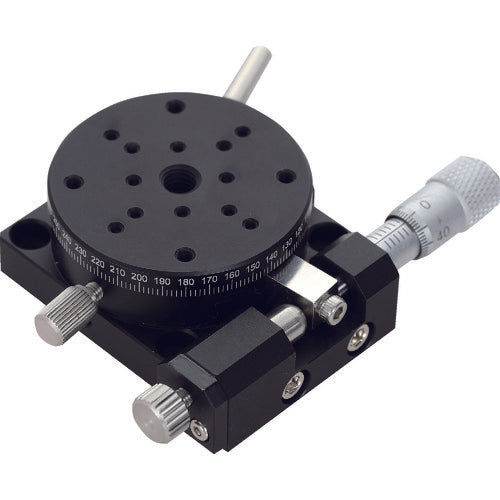

TRUSCO Rotating Stage 40 EGBR40 1 piece

Catalogue number: EGBR40 Features: ●This is a rotation stage that allows fine adjustments using a micrometer head after large angle adjustments. ●It can be widely used for positioning applications such as cameras and sensors. Applications: ●For positioning cameras, sensors, workpieces, etc. Specifications: ●Stage surface (mm): φ40 ●Horizontal load capacity (N): 9.8 ●Width (mm): 53 ●Depth (mm): 51 ●Thickness (mm): 20 ●Movement direction: 360° rotation ●Type: ●Rotary stage ●Movement amount (°): 360 ●Type ●Rotary stage ●Clamping method: Opposed clamping type ●Operation unit mounting position: Side ●Movement mechanism/feed method: Micrometer head type ●Movement guide: Grinding ●Movement amount: Coarse movement 360°, fine movement ±5° (micrometer head) ●Graduation: 1° Material/Finish: ●Table: Aluminum alloy ●Table surface treatment: Black anodized
