TRUSCO Anvil Vise with Rotating Table 100mm VRS-100N 1 unit
TRUSCO Anvil Vise with Rotating Table 100mm VRS-100N 1 unit
Regular price
¥22,999
Regular price
Sale price
¥22,999
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

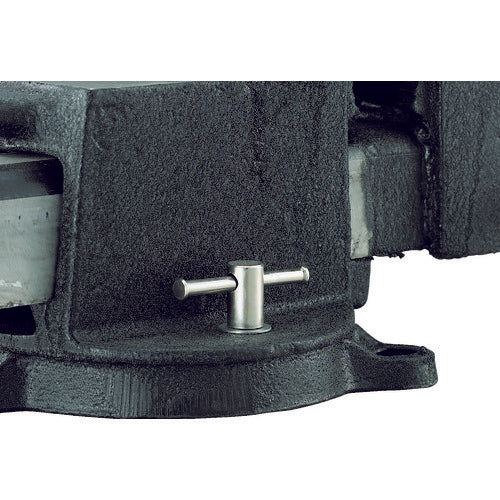

Catalog number: VRS-100N Features: ●The body is made of carbon steel cast steel, so it is durable and long-lasting. ●It has a rotating table and can rotate 360° in parallel. ●It has an anvil function. Applications: ●It can be used for work that involves striking. ●It rotates 360°, so you can work at any angle. Specifications: ●Total length (mm): 310 ●Width (mm): 132 ●Height (mm): 148 ●Jaw width (mm): 104 ●Jaw opening (mm): 100 ●Jaw depth (mm): 61 ●Mounting hole dimensions (mm): 11 ●Tightening pressure (kN): 14 ●Type: Anvil vise ●Mounting dimensions (mm) G: 138 ●Mounting dimensions (mm) H: 102 Materials/Finish: ●Body: Carbon steel ●Shaft, handle, jaw: Steel Set contents/Accessories: ●Rotating table Caution: ●Do not overtighten the handle by hitting it with a hammer, etc. ●Do not insert a pipe or other object into the handle to extend it and tighten it excessively. ●Do not use a lever to bend a workpiece secured in the vice or subject it to excessive shock. ●Damage or malfunction caused by misuse is not covered by the warranty.
