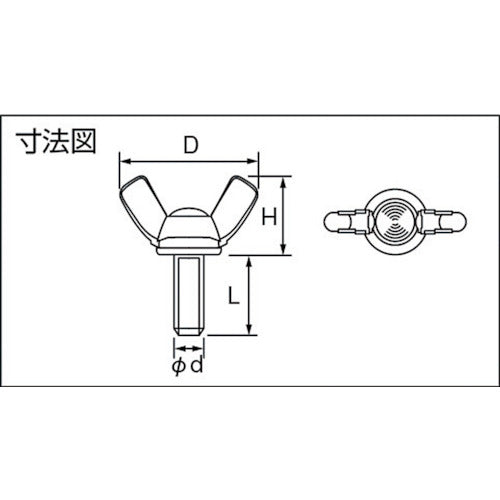

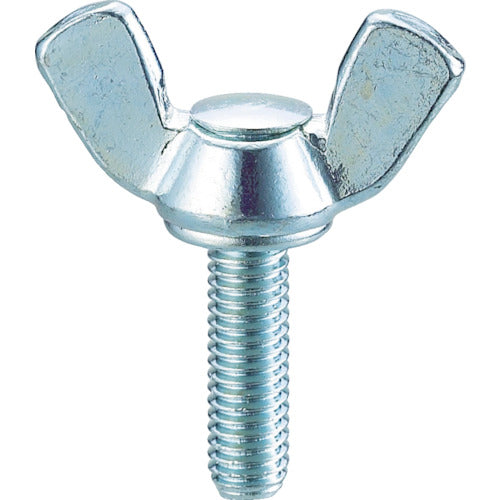

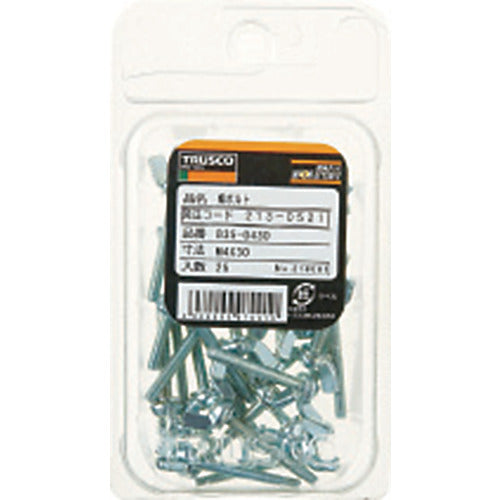

Catalog number: B39-0510 Features: ● The wing part, which utilizes the technology of pressed wing nuts, is set on the bolt using our unique setting technology. ● The guaranteed torque complies with JIS and is strong enough for a screw tightened by hand. Applications: ● Used for assembling construction, civil engineering, light current, agricultural equipment, furniture products, etc. Specifications: ● Nominal diameter d: M5 ● Nominal diameter (L): 10 ● Wing width D (mm): 26 ● Wing height H (mm): 13.8 ● Surface treatment: Unichrome ● Nominal diameter L: 10 ● Package: Bolt pack (blister) Material/Finish: ● Carbon steel wire for cold pressing (equivalent to SWRCH8-12R) ● Surface treatment: Unichrome plating finish
