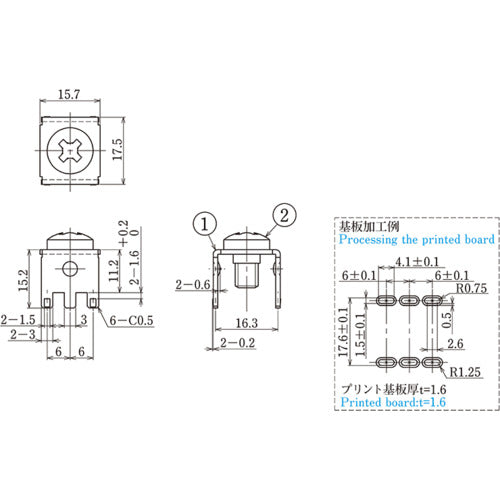

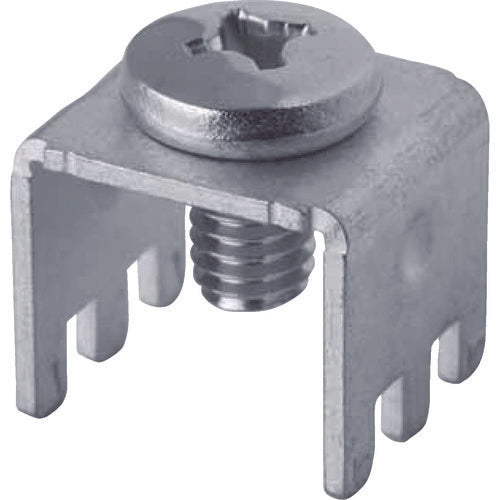

Catalog number: T4126ES Features: ●This is a PCB terminal that is widely used mainly in automotive, air conditioning, and new energy applications. Specifications: ●Rating: 130A ●Screw size: M6 ●Width (mm): 15.7 ●Height (mm): 15.2 ●Length (mm): 17.5 Material/Finish: ●PCB terminal: Brass (C2680R) or copper (C1100) tin-plated ●Screw: Brass (C2700W) or iron (SWCH/SPCC) nickel-plated Set contents/Accessories: ●M6X10L binding screw Note: ●Maximum screw tightening torque: 3.0N・m
